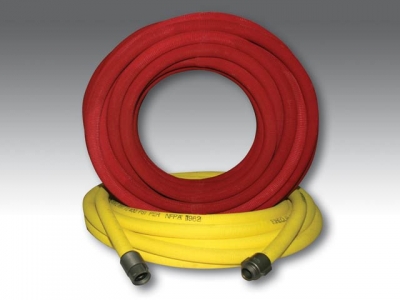

Key Fire Reel Lite Booster Hose

 Key Fire Reel Lite Booster Hose. A multi-purpose, lightweight, rigid 1” diameter attack hose that meets the needs of industrial, municipal and forestry market applications.

This uniquely constructed product features an all polyester cover for heat and abrasion resistance, along with a special helical interior reinforcement to retain its rigid shape. This thin-walled polyurethane lined hose, is the most durable lightweight booster hose on the market.

Hose Construction:  Circular woven, single jacket, combined with a helical interior reinforcement, and a
polyester cover. Standard lengths available up to 200 feet long.
Tube: Extruded polyurethane liner for age, ozone and chemical resistance.
Characteristics:
• Normal service conditions in temperature range from -30°F to 112°F
• Heat resistant up to 500°F
• UL abrasion test of 10,000 cycles minimum
• Minimum working pressure of 300 PSI
• Service test to 600 PSI
• Maximum burst pressure of 900 PSI
• Pliable and abrasion resistant cover
• Lightweight and kink resistant
• 1 year warranty against defects in material and workmanship
Abrasion Impregnation: A polyurethane based polymer impregnation results in a red or yellow color to
aid in abrasion resistance.
Couplings: Field replaceable coupling with a one inch NH thread standard. Aluminum internal expansion
ring coupling available upon request.

SIZE: 1"

SERVICE TEST: 300 PSI
PROOF TEST: 600 PSI
BURST TEST: 900 PSI
BOWL SIZE: 1 5/16"
WEIGHT-50'-COUPLED: 10 LBS
