Scotty Through the Pump Foam Eductor and Mixer

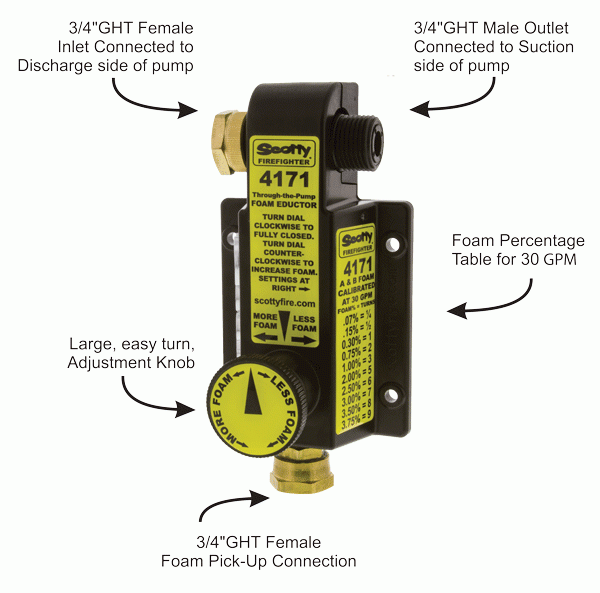

Scotty 4171 Foam Eductor and Mixer

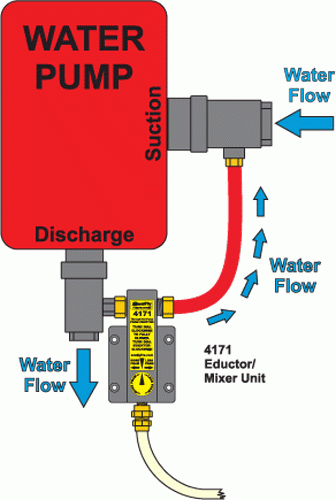

The Scotty 4171 "through-the-pump" Foam Eductor and Mixer educts foam concentrate into hose lines though a pump's suction and discharge sides.

FEATURES:

• Will educt concentrates at percentages of 0% to 3.75% at flow rates from
15 to 125 GPM at 100 PSI.

• Maximum operating pressure of 300 PSI.

CHOOSE FROM THESE SYSTEM OPTIONS:

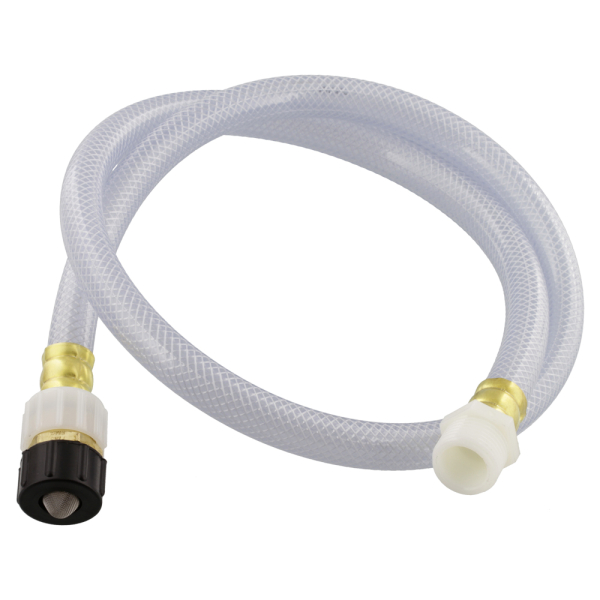

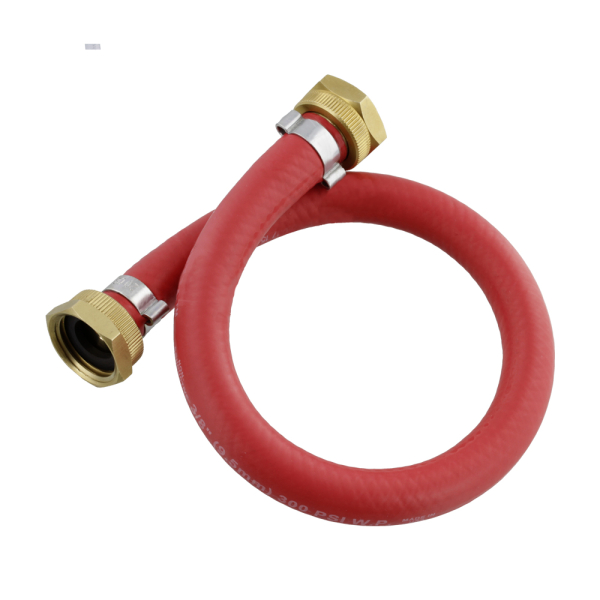

• 4171: Foam Eductor with an 18" Pressure Hose and a 48" Foam Pick-up Hose

• 4171-NH: Foam Eductor with no hoses (Eductor Only)

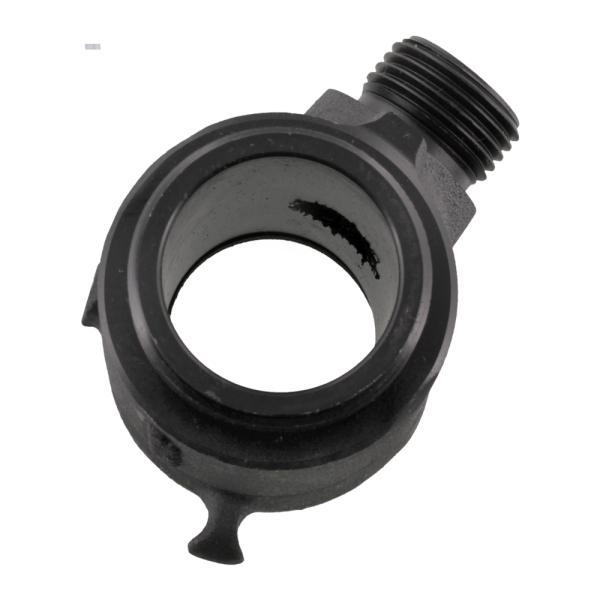

•  4171KIT 442.26 "Around-the-Pump" Foam Eductor w/ Pressure & Pick-Up Hoses, 1½" NPSH Tee, 2" NPSH Tee
