Harrington H400 5 Way Manifold

SKU: H400
Call for a quote if you are ordering more than one:
Drop ships from manufacturer: Call for lead time

Price:

$1740.00

0 Review(s)

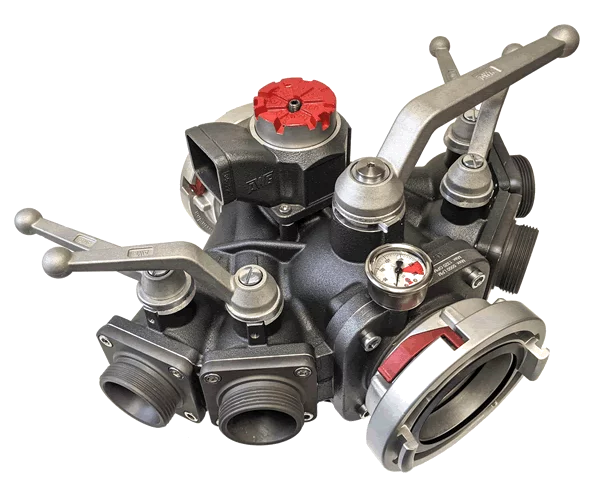

Harrington H400 Manifold

The Harrington H400 light weight, 5 way LDH manifold, feeds four smaller lines from one LDH line and also has one straight through LDH outlet.

FEATURES:

The balls are hard anodized with stainless steel tappets for corrosion resistance. The manifold has an adjustable pressure relief valve and a liquid filled pressure gauge.
Light weight aluminum design
Powder coated finish
Hard anodized balls and stainless steel tappet for best corrosion protection
Hard coated NH male flanges
Large waterway
Field adjustable 250 PSI pressure relief valve
Pressure gauge
Maintenance free

Rated Pressure: 240 PSI

Dimensions: L: 17” W: 24” H: 13”

Weight: 51 lbs

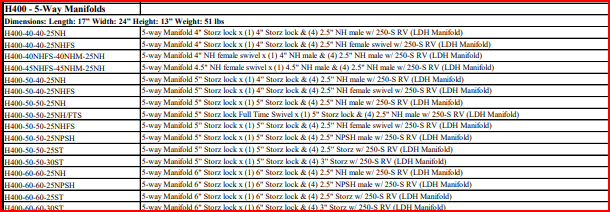

H400-40-40-25NH	5-way Manifold 4” Storz-Lok inlet x (1) 4” Storz-Lok outlet (4) 2.5” NH male outlets w/ 250-S RV (LDH Manifold)
H400-50-40-25NH	5-way Manifold 5” Storz-Lok inlet x (1) 4” Storz-Lok outlet (4) 2.5” NH male outlets w/ 250-S RV (LDH Manifold)
H400-50-50-25NH	5-way Manifold 5” Storz-Lok inlet x (1) 5” Storz-Lok outlet (4) 2.5” NH male outlets w/ 250-S RV (LDH Manifold)
H400-50-50-25NH/FTS	5-way Manifold 5” Storz-Lok full time swivel inlet x (1) 5” Storz-Lok outlet (4) 2.5” NH male outlets w/ 250-S RV (LDH Manifold)
H400-60-60-25NH	5-way Manifold 6” Storz-Lok inlet x (1) 6” Storz-Lok outlet x (4) 2.5” NH male outlets w/ 250-S RV (LDH Manifold)
