In-Line Foam Educator 2.5" nst 250GPM

SKU: 5205-250
Price:
$575.00

Qty: - +
   - OR -
Write a Review
0 Review(s)

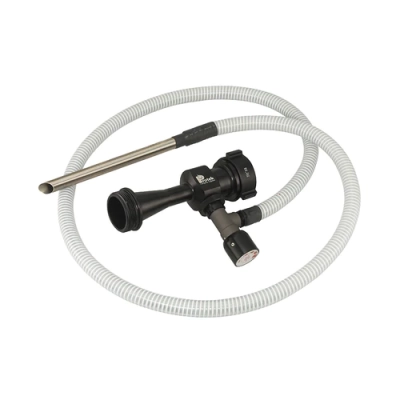

2.5" NST In-Line Foam Eductor 250GPM

Features

  • Eductors are rated for optimum flow at 200 psi (14 bar) inlet pressure
  • Works well with nozzles rated at 75 psi (5 bar) and 100 psi (7 bar)
  • Ball check valve prevents back flow into foam concentrate
  • Supplied with clear foam 9' pickup hose and 15" stainless steel tube
  • Pickup rate may be set at any position between 0% to 6% with detentes at 1/4, 1/2, 1, 3, and 6%

Specifications

  • Model: 5205-250
  • Flow Rate:    250 GPM (950 LPM)
  • Operating Pressure:  75 psi (5 bar), 100 psi (7 bar), 200 psi (14 bar)
  • Inlet: 2-1/2" (65 mm) NH
  • Outlet:  2-1/2" (65 mm)NH
  • Foam Proportioning: 1/4%, 1/2%, 1%, 3%, 6%
  • Material: Alloy
  • Length:  12" (305 mm)
  • Weight: 8 lbs (3.6 kg)
