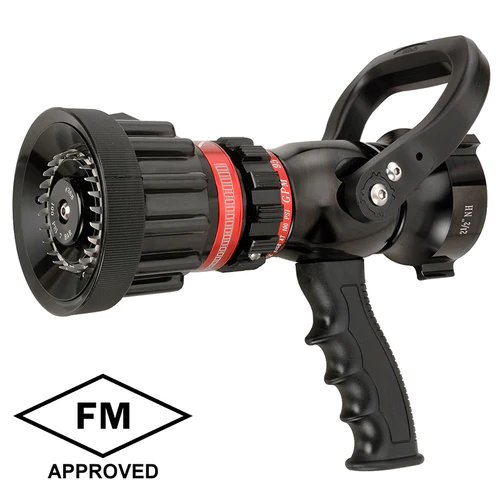

Protek 1368 2-1/2" High-Range Selectable

Gallonage Nozzle (95-125-150-200-250 GPM)

Features

• Combination pattern nozzles with multiple flow settings.
• Superb wide fog pattern for optimum fire fighter protection.
• Stainless steel spinning teeth.
• Heavy-duty chrome plated metal shutoff ball for smooth action and long life.
• Flow pattern detents facilitate positive positioning and smooth action.
• Raised lug for easier pattern identification.
• Laser-etched anodized label for excellent durability and visibility.
• Flush without changing pattern or shutting down.
• Ergonomic design pistol grip.
• Continuous female swivel inlet with stainless steel strainer.
• Minimal maintenance reflected in robust design, precision machining and quality materials.
• NFPA 1964 Compliant
• Uses Foam Aeration Tube: 1215
• Uses Medium Expansion Foam Tube: 1227
• FM Approved

Specifications

• Style: 1368
• Flow Rate: 95-125-150-200-250 GPM (360-475-550-750-950 LPM)
• Operating Pressure: 100 psi (7 bar)
• Waterway: 1 3/8”
• Inlet: 2 1/2" (65 mm) – NH or NPSH
• Length: 11.0" (260 mm)
• Weight: 6.3 lbs (2.8
