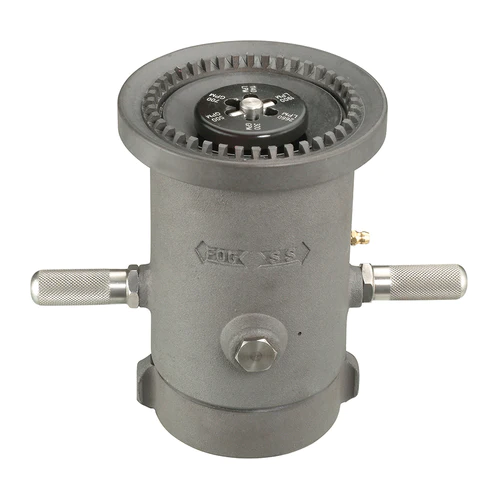

Protek 3822 2-1/2" Adjustable Flow Baffle Monitor Nozzle

150-250-350-500 GPM

Features

• Spring loaded baffle enables flow rate selection (shut down flow before adjusting)
• Durable lightweight alloy construction
• Combination of straight stream and variable fog patterns
• Straight stream is clean and far-reaching
• Fog pattern is wide, dense and fully adjustable
• Flow and pressure are laser engraved on the baffle
• Nozzle must be shut down to change flow setting
• Low maintenance, high quality components

Specifications

• Model: 3822
• Flow Rate:   150, 250, 350, 500 GPM (550, 950, 1325, 1900 LPM)Operating Pressure: 100 psi (7 bar)
• Inlet:  2-1/2" (65 mm)
• Teeth:   Fixed
• Material: Alloy
• Length:   6.7" (170 mm)
• Weight: 4.4 lbs (2 kg)
